Electro Pneumatic Transducer (Control Air Transducer- I to P)- 4-20 mA(I) to 3-27 PSI(P)
Electronics • Other
₹ 4,000
* GST/VAT : Excluded
* Freight Charges : Excluded
SOLD BY
PARANTHAMAN G Gopal (Individual)
Mangadu, Tamil Nadu, India
Posted on :- 28 Oct 2025
Description

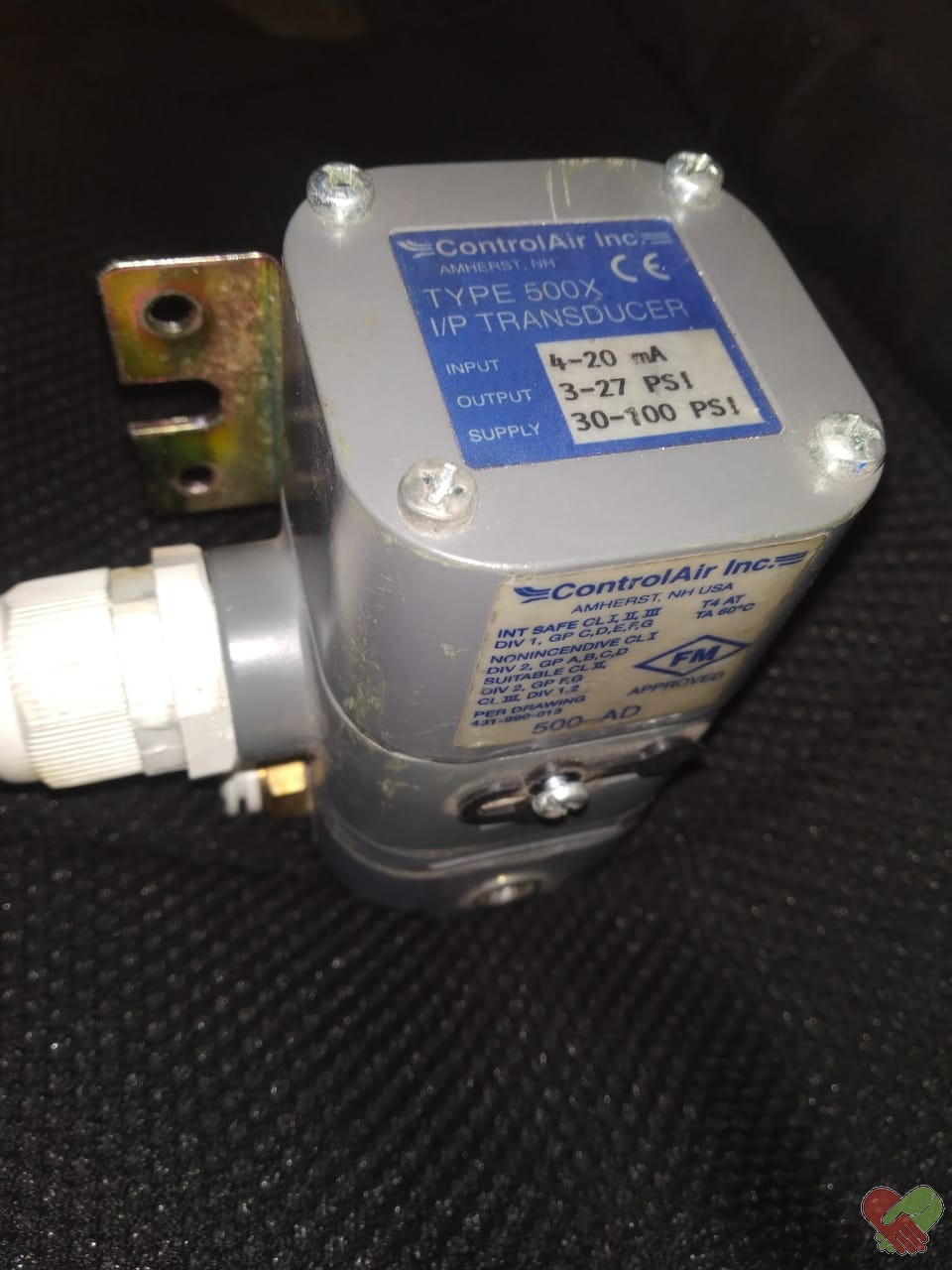

Description : Electro Pnematic Transducer Model : 500X Make: Control Air Inc. Input : 4- 20 mA Output : 3-27 psig (Presure) Supply Pressure: 30 psig - 100 psig Flow Rate: 4.5 scfm (127.35 NL/min) at 25 psig (1.7 bar) supply 12.0 scfm (339.6 NL/min at 100 psig (6.8 bar) Response TIme: Dependent on pressure range - typically less than 0.25 sec for 3-15 psig units Relief Capacity 2 scfm (56.6 NL/min) at 5 psig (2.4 bar) above 20 psig (1.3 bar) setpoint Impedence 4-20 mA 220 Ohms 0-5 VDC 530 Ohms 1-9 VDC 840 Ohms
Specification
| Mfg. By / Brand Name | Control Air |
| Year of manufacture | 2012 |
| size | - |
| power | - |
| Weight | - |
| location | Chennai, Tamil Nadu, India |
| Machine type | Used |
| Seller type | 1st User |
Service provider
| Service provider | N.A. |
| contact number | 97XXXXX191 |
